In any security or imaging system, signal quality is the foundation of reliable performance. Even the most advanced cameras cannot deliver clear and stable video if the connection points are weak or poorly designed. Among all system components, connectors play a surprisingly important role in maintaining signal integrity from the camera to the recording or display device.
A well-designed connection ensures that data travels smoothly without loss, distortion, or interference. On the other hand, low-quality connectors can introduce instability that affects the entire surveillance system.

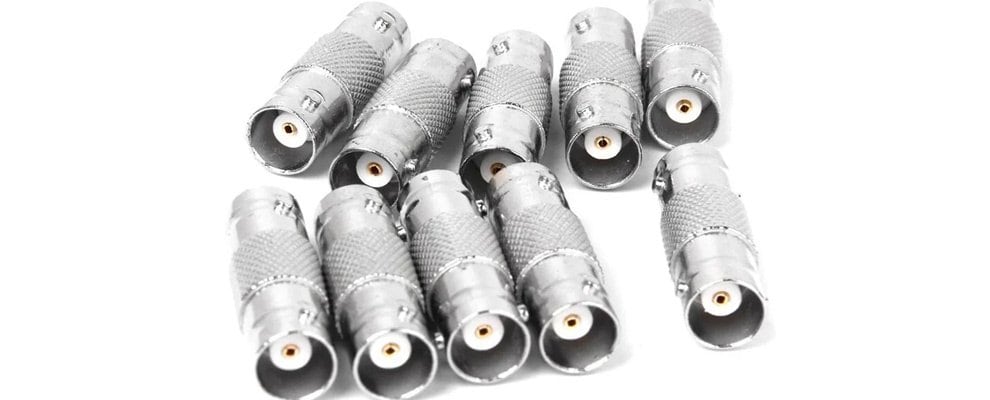

A high-quality camera cable connector is widely used in professional security setups because it helps maintain strong signal stability, reduces interference, and ensures consistent video performance over time.
The Role of Connectors in Signal Transmission
Connectors serve as the physical and electrical bridge between cables and devices. Their job is to ensure uninterrupted signal flow without introducing resistance or distortion.
When a camera captures video, the signal must pass through multiple connection points before reaching a monitor or recording device. If any of these points are weak, the signal quality can degrade significantly.
A reliable connector ensures:
- Stable electrical contact
- Minimal signal loss
- Proper impedance matching
- Reduced interference risk
Even small inconsistencies in connectors can affect overall system performance.
How Poor Connectors Affect Video Quality
Low-quality or improperly installed connectors can cause a range of video problems that directly impact surveillance effectiveness.
Common issues include:
- Blurry or distorted images
- Flickering video output
- Color inconsistencies
- Signal dropouts
- Delayed transmission
These issues often become more noticeable in long-distance installations or environments with electrical interference.
Signal Loss and Resistance Issues
Every connector introduces a small amount of resistance in the signal path. High-quality connectors minimize this resistance, while poor ones increase it.
Effects of high resistance include:
- Weaker signal strength
- Reduced transmission distance
- Lower image clarity
- Increased noise levels
Proper connector design ensures that resistance remains low, preserving signal strength throughout the system.
Importance of Impedance Matching
Impedance matching is critical for maintaining signal stability in camera systems. When connectors are not properly matched to the cable and device specifications, signal reflections can occur.
Poor impedance matching can lead to:
- Ghosting effects in video
- Signal distortion
- Unstable image output
High-quality connectors are engineered to maintain consistent impedance levels, ensuring smooth signal flow.
Role of Shielding in Signal Stability
External electromagnetic interference is one of the biggest threats to signal quality. Connectors with proper shielding help block unwanted noise from entering the system.
Benefits of good shielding include:
- Reduced video noise
- Stable image transmission
- Protection from electrical interference
- Improved performance in industrial environments
Shielding is especially important in areas with heavy machinery or dense electrical wiring.
Connection Stability and Physical Design
The physical design of a connector also affects signal reliability. A loose or poorly designed connector can cause intermittent signal loss, even if the cable itself is high quality.
Important design features include:
- Secure locking mechanism
- Tight contact points
- Durable housing materials
- Resistance to vibration and movement
Stable physical connections ensure continuous video transmission without interruptions.
Environmental Impact on Connector Performance
Environmental conditions can influence how well connectors perform over time. Moisture, heat, and dust can gradually degrade signal quality if protection is insufficient.
Common environmental challenges:
- Corrosion in humid conditions
- Heat-related material degradation
- Dust affecting contact points
- Water intrusion in outdoor setups
Using properly sealed connectors helps maintain long-term stability in harsh environments.
Installation Quality and Its Effect on Signal
Even high-quality connectors can perform poorly if installed incorrectly. Proper installation ensures that signal integrity is maintained from the start.
Installation factors that matter:
- Correct crimping or termination
- Secure cable attachment
- Avoiding excessive bending near connectors
- Ensuring clean contact surfaces
Professional installation significantly reduces the risk of signal instability.
Long-Term Performance and Maintenance
Over time, connectors may wear out due to constant use or environmental exposure. Regular inspection helps maintain consistent performance.
Maintenance practices include:
- Checking for loose fittings
- Cleaning contact points
- Inspecting for corrosion or damage
- Replacing worn connectors promptly
Routine maintenance helps prevent unexpected signal failures.
Conclusion
Camera cable connectors play a crucial role in determining the quality and stability of video signals in security and imaging systems. Factors such as resistance, impedance matching, shielding, and physical design all contribute to overall performance.
By selecting high-quality components and ensuring proper installation and maintenance, users can significantly improve system reliability. A well-designed connector system ensures stable, clear, and uninterrupted video transmission, which is essential for effective surveillance and monitoring applications.
